T-Cycle
Chain idler set for Optima Baron
Chain idler set for Optima Baron
SKU:1833
In stock - Ships within 1-3 business days
Couldn't load pickup availability
- T-Cycle chain idler set optimized for Optima Baron, 2 options available:
- Small set with one idler + accessories for a basic improvement
- Large set with three idlers + accessories for maximum efficiency. Keeps the chain away from the tire and fork and allows for maximum steering angle.
- Material & Quality:
- ELITE: Titanium cog + high-quality precision bearings Ceramic Hybrid
- SPORT: 7075 Aluminum cog + high-quality precision bearings ABEC7
- CNC-machined, anodised components
- Weight from 77 g
Assembly instructions
Assembly instructions
Product information
Product information
Manufacturer
Importer
Description

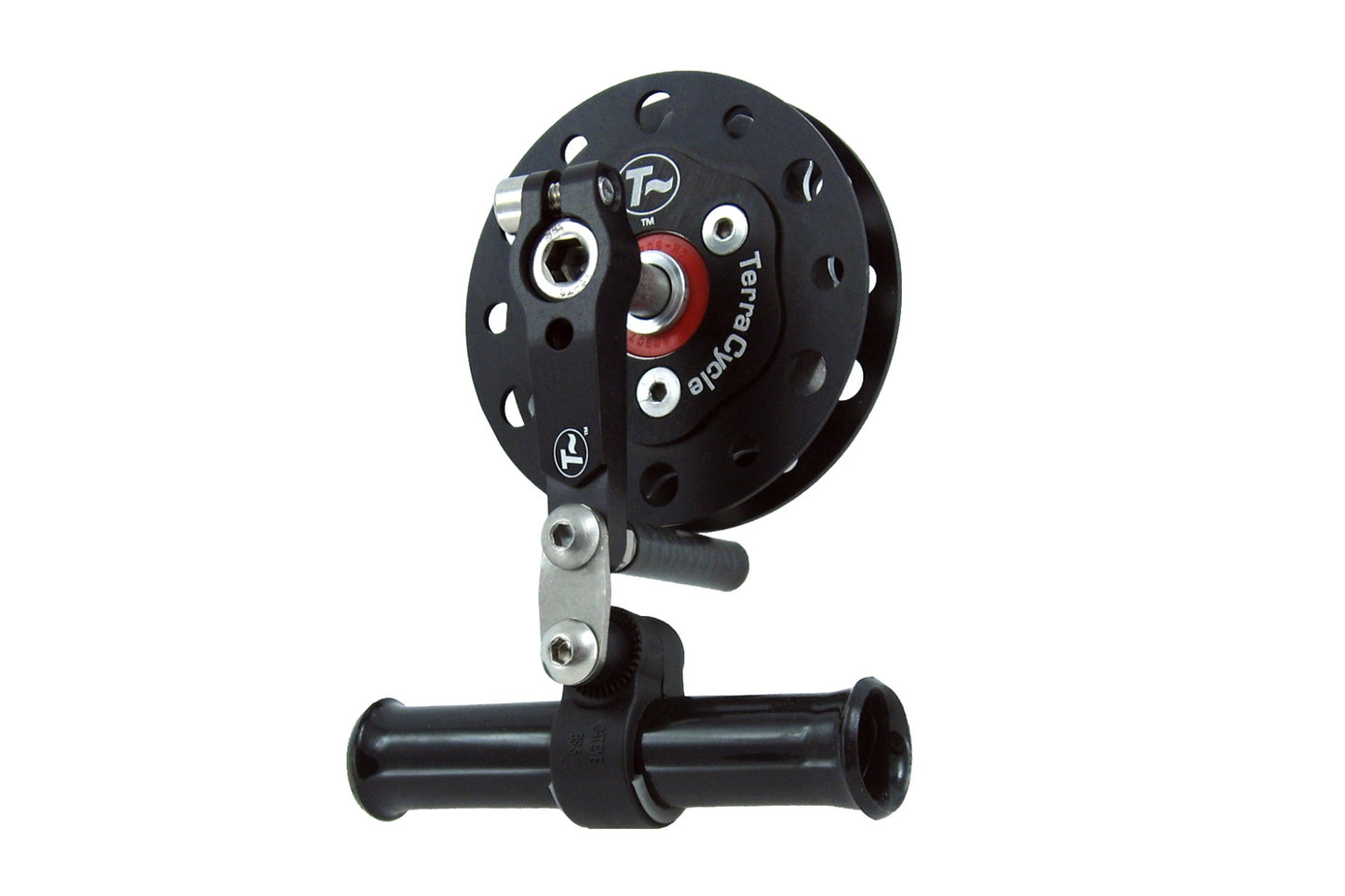

Small idler set for Optima Baron ELITE/SPORT
Contents
- 1x drive idler with titanium cog and ceramic ball bearing
- 1x mounting arm
- 1x chain guide
- 1x Floating Chain Guide Tube
Description

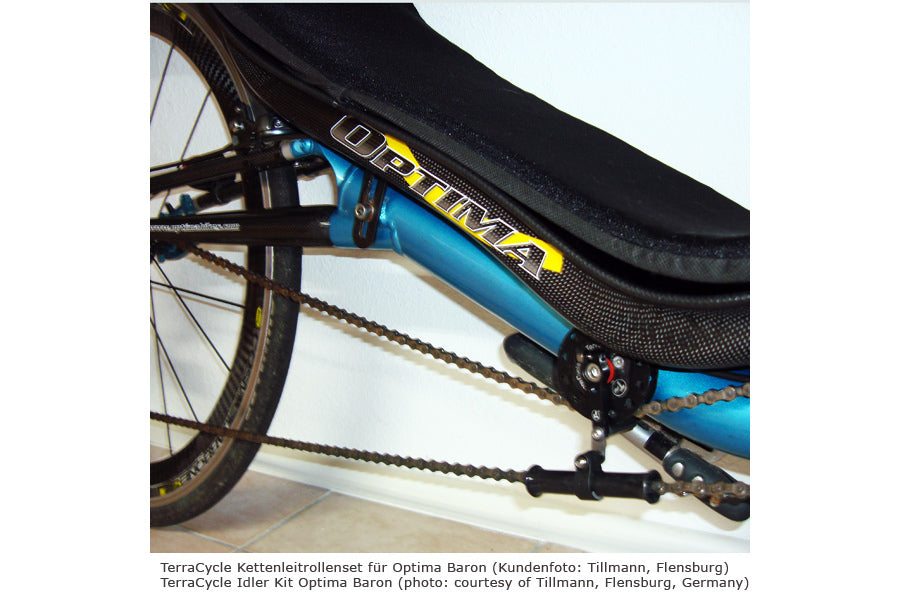

The T-Cycle Optima Baron chain idler set replaces the regular chain idler under the seat with a high-quality, quiet, stable and durable T-Cycle chain idler. The clamping device for mount and the chain guide allow the chain idler and guide to adapt to the movements of the chain by pedaling and shifting. The set also includes a movable chain guide tube, which secures the course of the returning chain in a simple and efficient way.

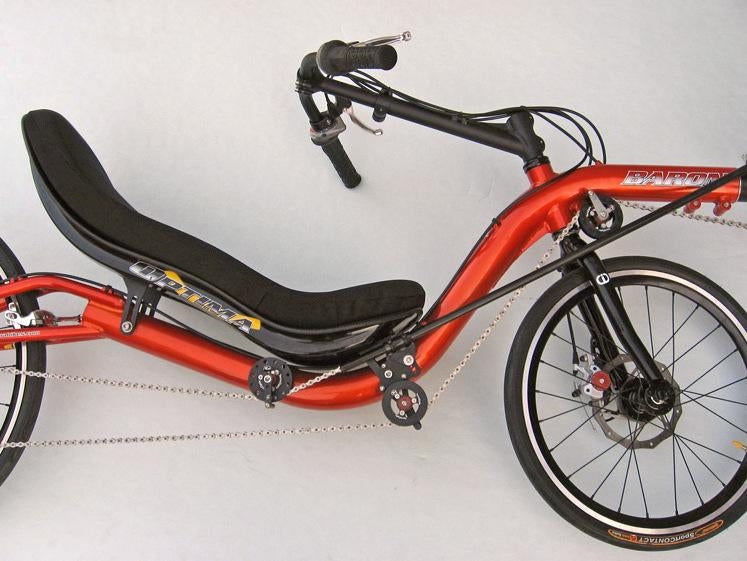

Large idler set for Optima Baron ELITE/SPORT
Contents
- 1x drive idler with titanium cog and ceramic ball bearing
- 2x return idler with ceramic ball bearing
- 1x Special Mounting Bracket
Description
The Optima Baron has a special chain line that also requires a special chain idler system. That's why we have the Optima Baron chain idler set from T-Cycle. The base consists of two return idlers and one drive idler, all of which are freely rotating. This set includes just the right combination of chain idlers, chain guard tubes and mounting hardware to get the most efficiency out of your bike and keep the chain away from the tire and fork, allowing maximum steering radius to be used.
The heart of the set is a toothed drive idler, which allows more pedaling power to be transferred to the rear wheel. The drive chain is also routed through a long chain guard tube, which is mounted in a special, self-adjusting fixture. This specially made bracket allows the chain protection tube to adapt to the changing chain line caused by shifting operations. This special bracket, which replaces the original assembly in front of the seat, also mounts an axially floating return idler. The second return idler above the fork is mounted with another special bracket so that the larger diameter of the idler does not restrict steering.
Idler Specifications
- High-quality idler with Titanium cog (ELITE) or 7075 Aluminium cog (SPORT)
- Teeth: 15
- Diameter: 70 mm
- Width: 16 mm (ELITE) or 16.5 mm (SPORT)
- Disc spacing: 8.5 mm (ELITE) or 7.5 mm (SPORT)
- Inside diameter: 8 mm or 10 mm
- Bearings: Ceramic Hybrid (ELITE) or ABEC7 (SPORT)
- Cog: 6AI/4V Titanium, CNC-machined (ELITE) or 7075 Aluminium (SPORT)
- Carrier: 7075 Aluminium, CNC-machined, anodised
- Side plates: 7075 Aluminium, CNC-machined, anodised, laser-etched
- Bolts: 18/8 stainless steel
- Weight: from 77 g
