Battery mount T-Cycle universal
Battery mount T-Cycle universal
SKU:2548
Regular price
€159,00 EUR
Regular price
Sale price
€159,00 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
In stock - Ships within 1-3 business days
Couldn't load pickup availability
- Choose the correct clamp size referring to the chart in the description
- Fits almost all recumbents and trikes
- Load capacity up to 6,8 kg (15 lbs)
- CNC-machined from 6061 AluminumT6
- Anodized black

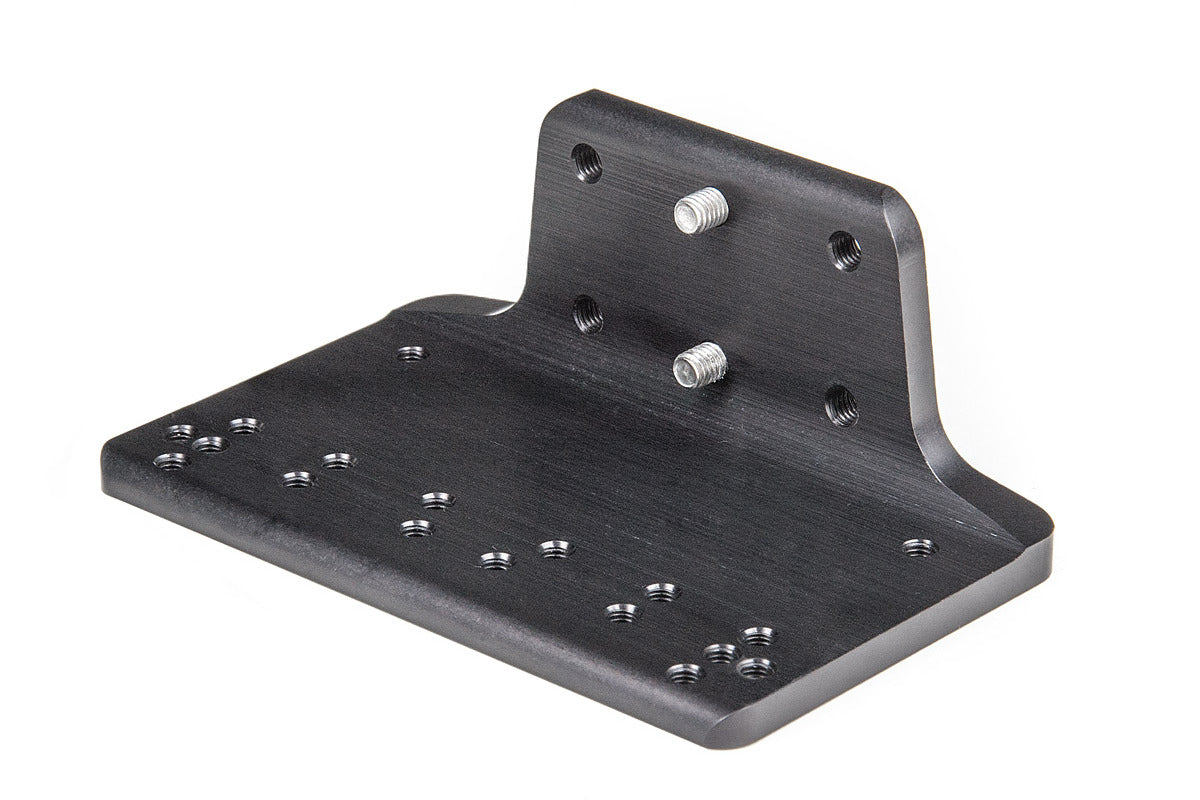

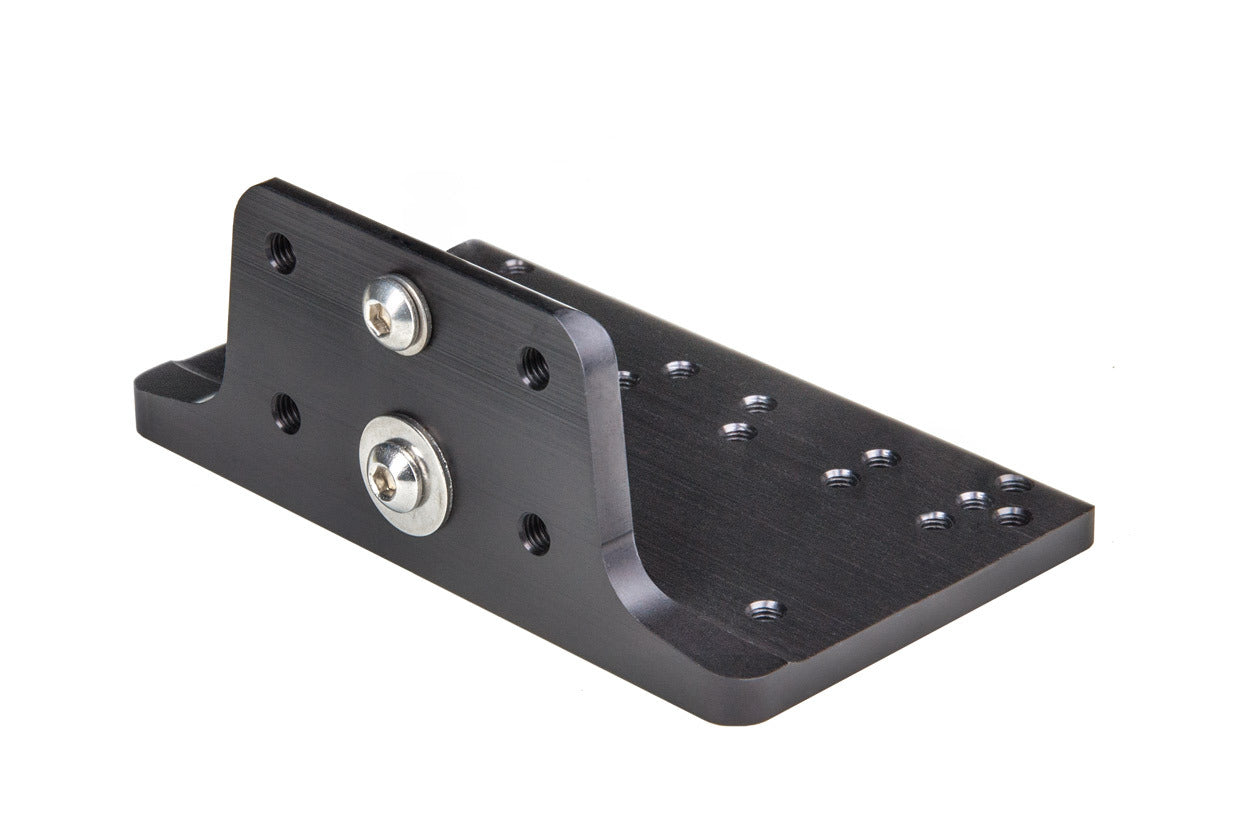

- Battery shelf size: 125 x 65 mm
Assembly instructions
Assembly instructions
Product information
Product information
Manufacturer
Importer
Description

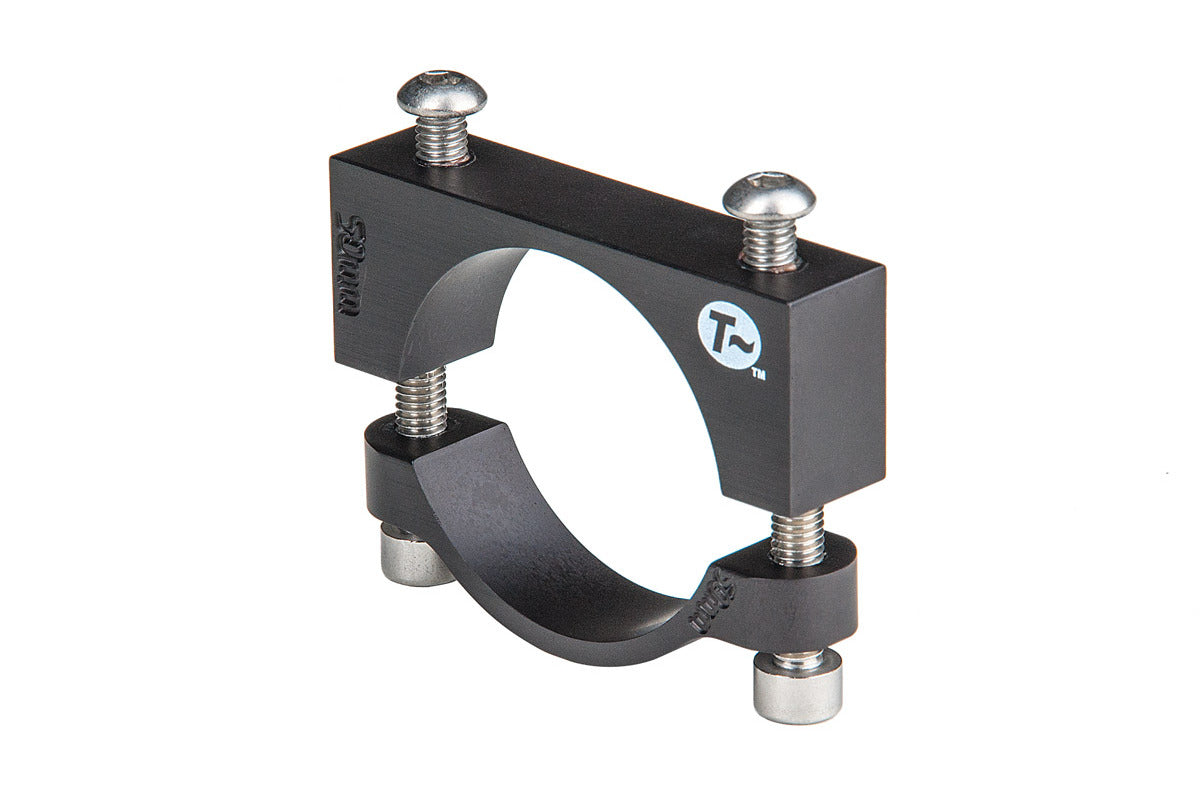

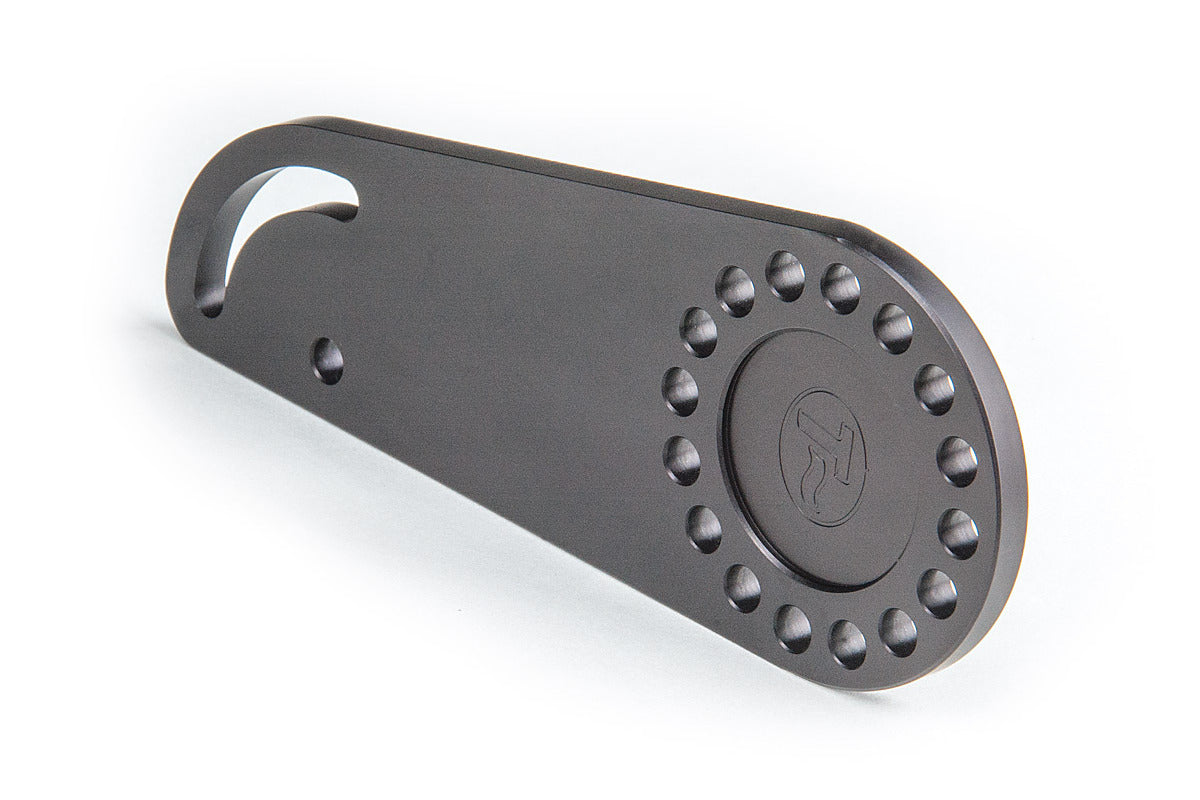

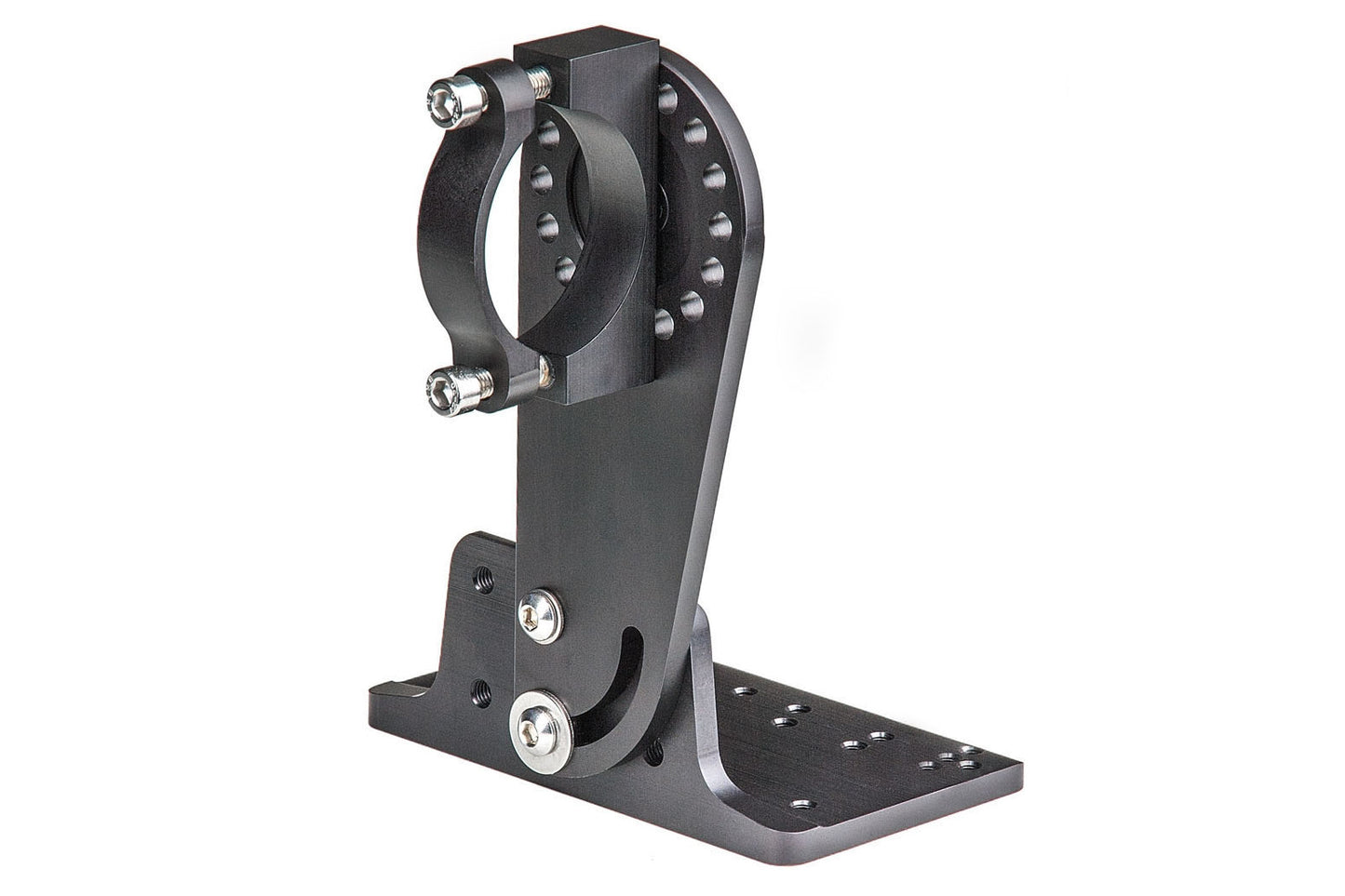

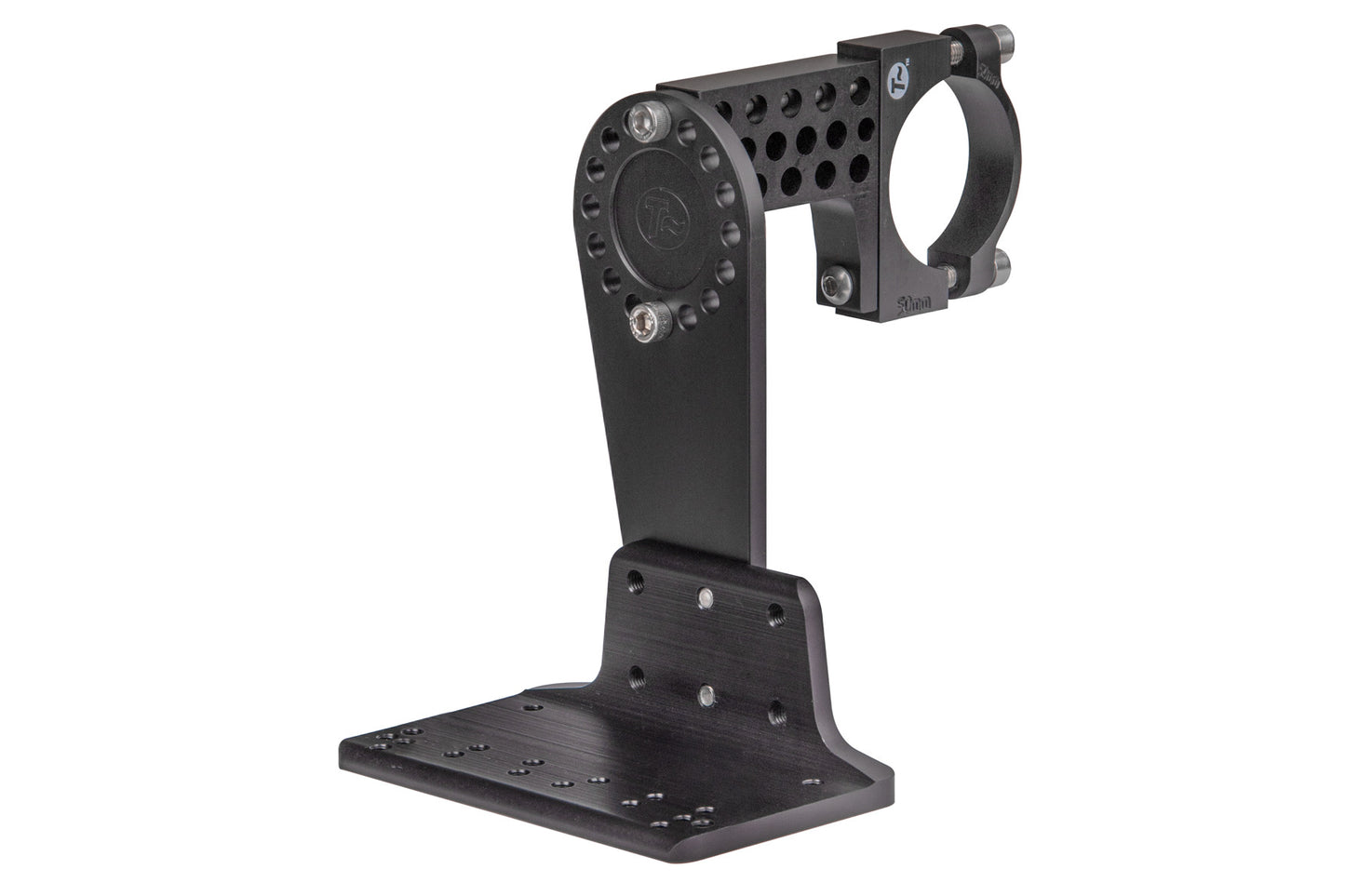

The T-Cycle universal battery mount is elaborately milled from black anodized aluminum and is therefore particularly robust. The holder can be attached to almost any type of frame tube thanks to its various frame clamp options. The position of the mounting arm and the mounting plate is very diverse due to the 360 degree setting options per bolt circle.
The battery shelf already has the appropriate holes for installing the battery rails from various manufacturers.
| 1.625 inch | |
| 1.75 inch | for ICE and Steintrike |
| 1.8 inch | for Catrike |
| 2.0 inch |
|
| 35 mm x 35 mm (square) | for Anthrotech |
| 50 mm | |
| 54 mm | |
| 60 mm | for HP Velotechnik and AZUB |
If you have any doubts about which frame clamp will fit your recumbent, you can print out our measuring tool for round tubes here.
